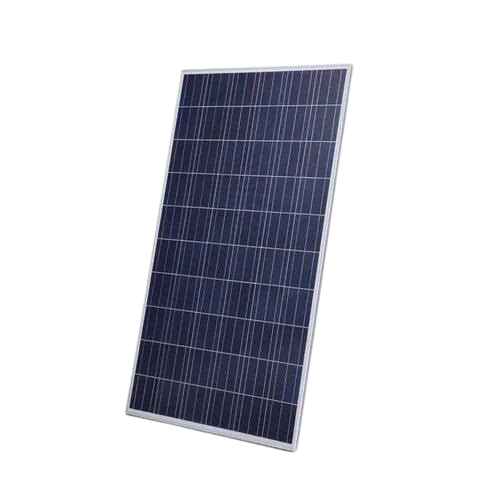

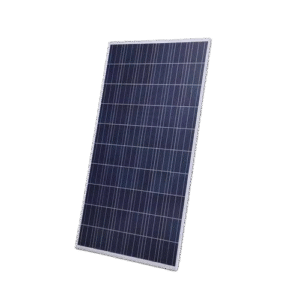

300W Polycrystalline Solar Panel

Description

The 300W Polycrystalline Solar Panel is a reliable and cost-effective choice for solar energy generation. Built with durable polycrystalline cells, it delivers excellent performance under various weather conditions and is optimized to provide stable power output over its long lifespan. The panel is protected with tempered glass and an anodized aluminum frame, ensuring resistance to harsh environmental conditions such as wind, snow, and rain.

It is ideal for grid-tied and off-grid applications, including home solar systems, solar farms, commercial rooftops, and standalone systems like street lighting, water pumping, and RV/boat setups. With its high module efficiency and low degradation rate, this 300W solar panel offers an outstanding return on investment for renewable energy users.

Technical Specifications (Typical for 300W Polycrystalline Panel):

• Model Power Rating: 300W

• Cell Type: Polycrystalline silicon

• Module Efficiency: ~16–18%

• Maximum Power Voltage (Vmp): ~36V

• Maximum Power Current (Imp): ~8.3A

• Open Circuit Voltage (Voc): ~44V

• Short Circuit Current (Isc): ~8.9A

• Nominal Operating Cell Temperature (NOCT): 45±2°C

• Operating Temperature Range: -40°C to +85°C

• Maximum System Voltage: 1000V DC / 1500V DC (depending on certification)

• Frame: Anodized aluminum alloy (corrosion-resistant)

• Front Cover: 3.2mm high-transparency tempered glass

• Junction Box: IP65 / IP67 with bypass diodes

• Connector Type: MC4 or compatible

• Dimensions: ~1956 × 992 × 40 mm (varies by manufacturer)

• Weight: ~22 kg
